Laser Security System Project Circuit Diagram Use LaunchPad to Make a Laser Tripwire Alarm; An Introduction to Laser Diodes; ESP Alarm: Make an IoT, Wi-Fi Enabled Alarm Clock with an ESP8266 and Arduino UNO; Build Your Own Alarm System with an LM386 Amplifier and an NPN Transistor; From Apple to OpenLight: Silicon Photonics and Integrated Lasers with Dr. Tom Mader A laser-based security system is a type of security alarm that uses a light sensor and laser light. In this tutorial, we are going to demonstrate a circuit of a laser security alarm system that will detect any irregular activity and will produce sound using a buzzer. One of the main components of this circuit is LDR. Working of the Laser Light Security System Using Arduino. The project basically works on the principle of interruption. If by any means the LASER light is interrupted the alarm will start unless it is reset with push-button. The laser is a concentrated light source that puts out a straight beam of light of a single color.
How laser light Arduino security system works. Though the project looks super technical it works with a very simple principle. It has an LDR and a toy laser, the laser light is directed to the LDR when it cuts off the alarm makes a noise.

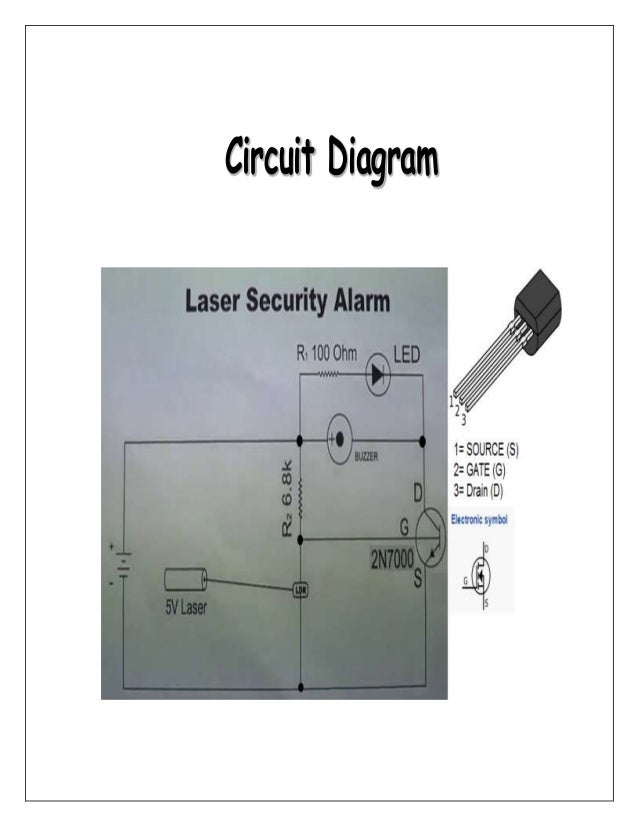

Laser Diode & LDR based alarm system using Arduino Circuit Diagram
Here is a basic idea of how you can make a laser security alarm using an Arduino and an LDR sensor: Materials needed: Arduino board; Laser diode; LDR sensor; Buzzer; Breadboard; Jumper wires; 220 Ohm resistor; Steps: Connect the LDR sensor to the breadboard. Connect the 220 Ohm resistor to the LDR sensor and connect it to the ground pin on the Tutorial to use Sensor First time!!In this video we are making a Laser Security System Alarm using LDR Module and Laser Diode Module . Link to code below. Lo Simple home security project using laser light and Arduino nano. Laser Security System at Home - Basic laser security alarm. Components and supplies. 1. Solderless Breadboard Full Size. 1. Resistor 10k ohm. 1. Laser Diode, 2 Pins. 1. Arduino Nano R3. 1. LDR, 5 Mohm. 2. Resistor 330 ohm. 1. Signal Relay, 5 VDC. 1. Buzzer. 1. LED (generic
The laser based alarm system is suitable for application where detection based on light beam are useful. Similar alarm system can be designed using only LDR(see Light Dependent Resistor (LDR) Light Detector Alarm with Arduino). Other alarm system can be designed using Infrared sensor and/or Photo Diode(Photodiode Light Detector with Arduino).
